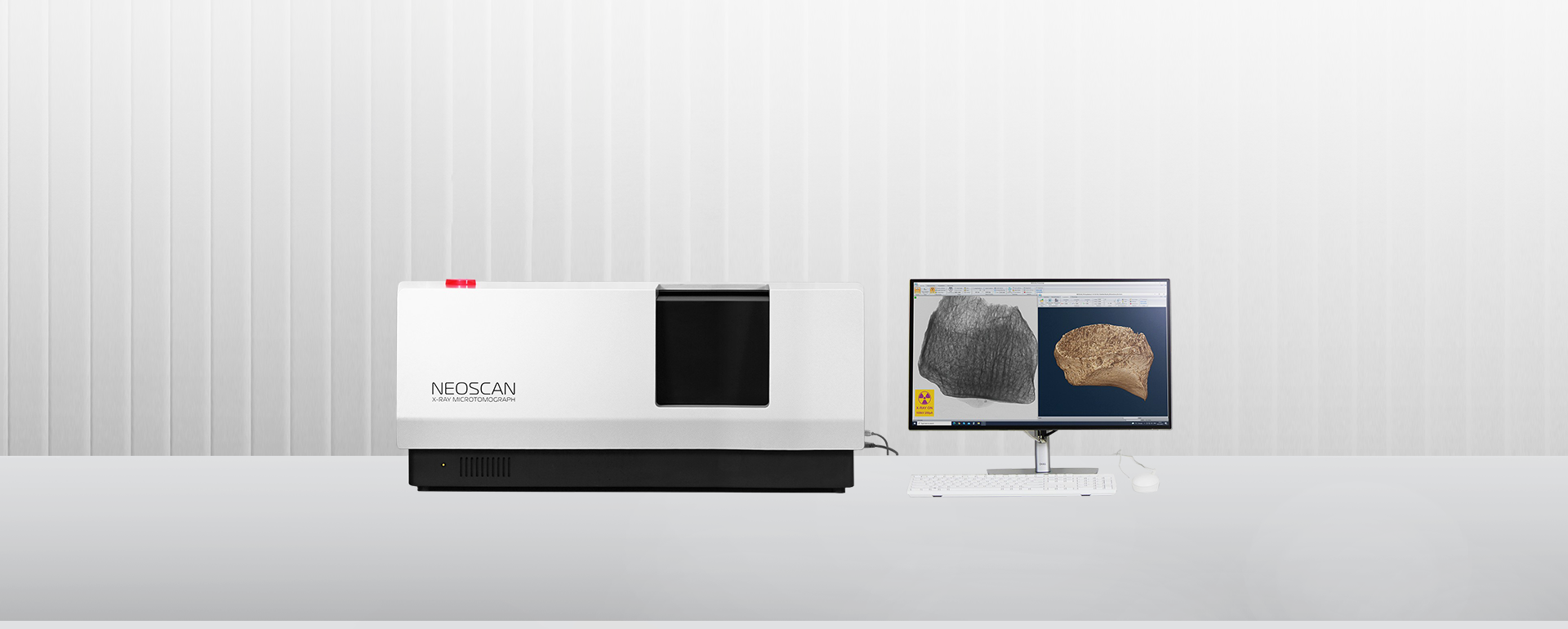

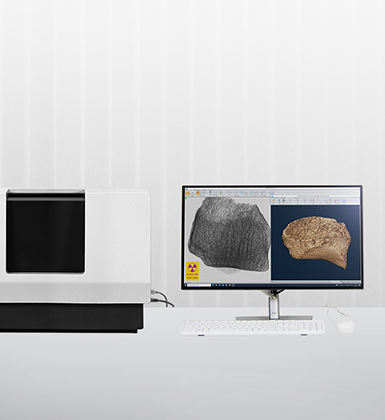

N70 General Purpose Micro CT
Universal desktop micro CT
General Purpose Microscope CT
The perfect unity of high-resolution and big area sample test
The perfect unity of high-resolution and big area sample test
The N70 General Purpose Benchtop Micro CT has the largest sample compartment for large sample inspection. It also has a fast scanning capability for high quality imaging in a short period of time. This makes the N70 a very affordable choice for experiments and research projects that require fast results.
Why choose N70 Micro CT?
Why choose N70 Micro CT?
-
Cost-effective equipment, ultimate performance to price ratio
-
Fast scanning with outstanding image quality -
High-resolution imaging for a wide range of applications -
Large chamber volume, large sample size适用任意尺寸、任意形状的样品，兼容高达 100 mm、长度 220 mm 的大物体，无需特别的样品制备过程
-
All-in-one software design with free upgrades
Cost-effective equipment, ultimate performance to price ratio
Fast scanning with outstanding image quality
High-resolution imaging for a wide range of applications
Large chamber volume, large sample size
适用任意尺寸、任意形状的样品，兼容高达 100 mm、长度 220 mm 的大物体，无需特别的样品制备过程
All-in-one software design with free upgrades
Product Specification
Product Specification
| Overall indicators | |
| Pixel resolution | 2.5 µm |
| Spatial resolution | 4 µm |
| Maximum scanning diameter | 100 mm |
| Maximum scanning height | 120 mm |
| Sample height | 220 mm |
| Equipment size | 1050 x 607 x 463 (mm) |
| Equipment weight | 210 kg |
| X-ray source | |
| Maximum voltage | 100 kV |
| Maximum power | 20 W |
| Focus size | 5 µm |
| Number of filters | 12 |
| Equipment detectors | |
| Image detector | 7 MP CMOS |
| Field of view | 140 x 120 mm |
| Radiological defense | Anti-Radiation Damage Function |
展开查看更多内容
Product Application
Product Application
Scan a 980nm per pixel
Scan at 980nm per pixel
Carbonate samples were scanned using NEOSCANN70 to display their internal 3D microstructure in a non-destructive manner.
Scan at 860nm per pixel
Scan at 980nm per pixel
Scanning USB-C memory sticks with the NEOSCAN N70 enables non-destructive visualization of electronic components.
Scan at 860nm per pixel
Scan at 860nm per pixel
Scanning of roasted coffee beans with NEOSCAN N70 showing internal porous structure

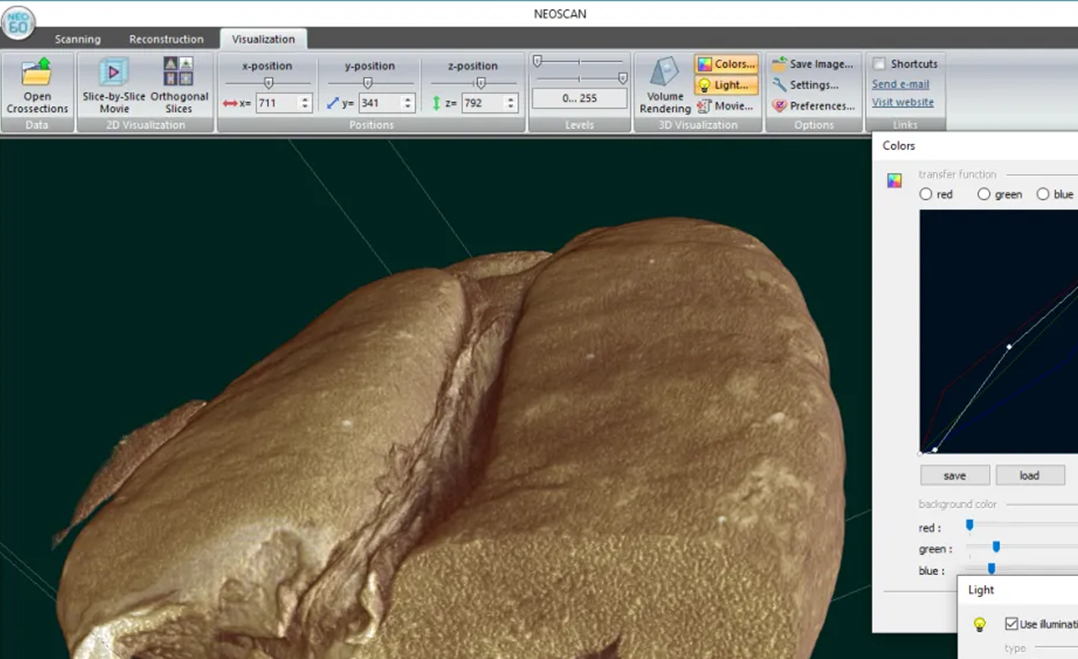

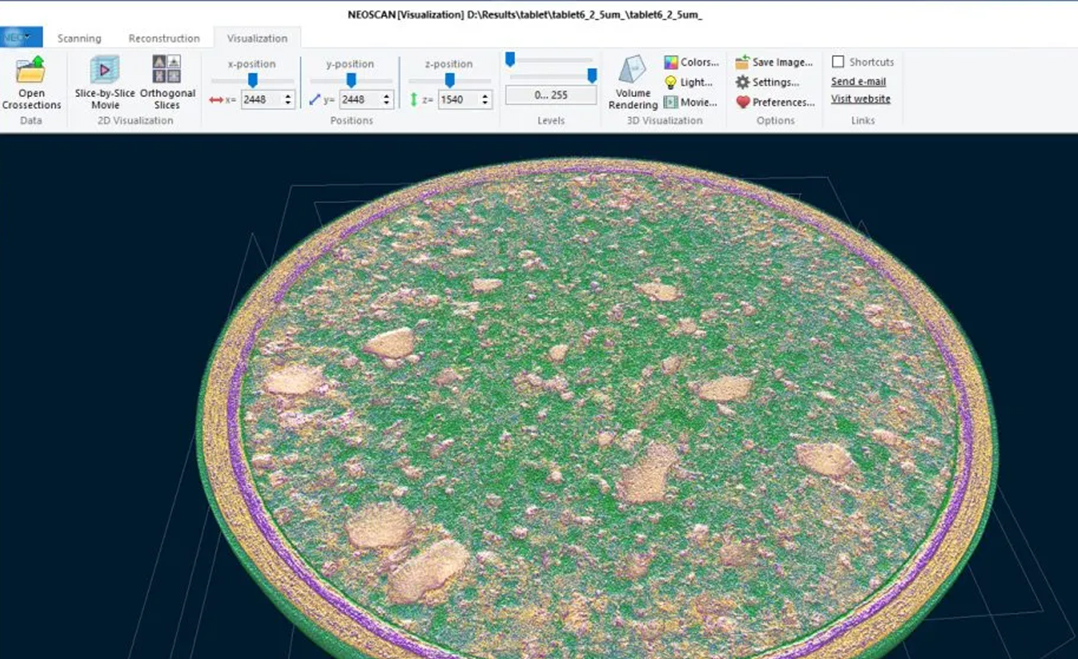

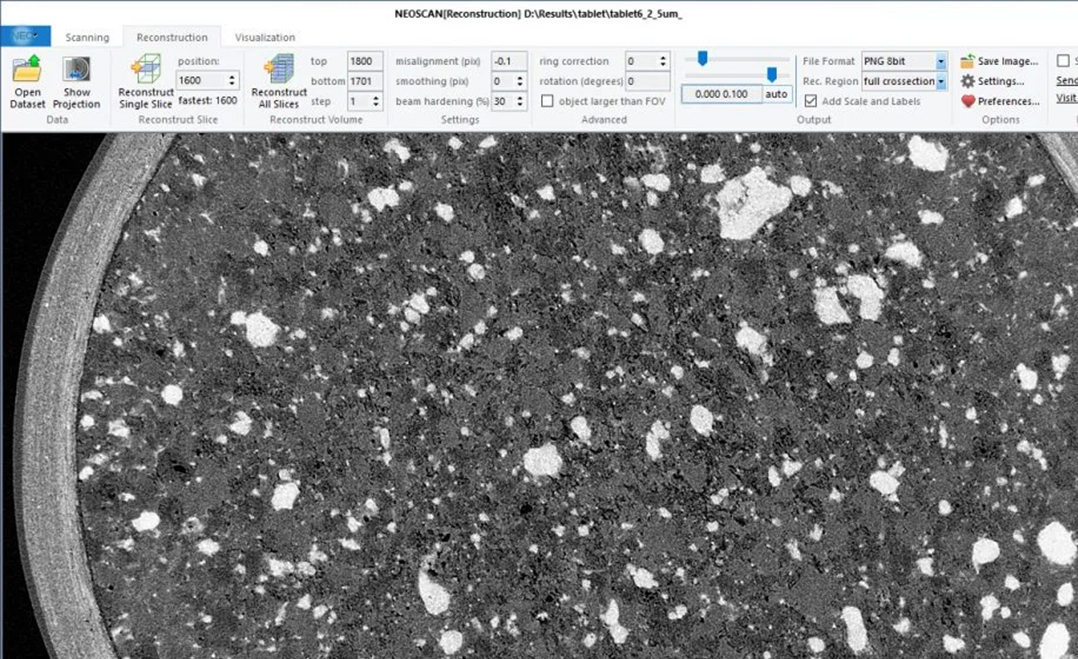

Product Software
Product Software
- Process-oriented processing with intuitive interface;
- The software integrates various functions such as scanning, reconstructing, calculating, and outputting models.
- No need to switch between multiple software, convenient and easy to use;
- The software is free of charge and supports remote diagnosis.
Product Accessories
Product Accessories
- 温控样品台
- 压缩/拉伸试验台
- 自动进样装置
01

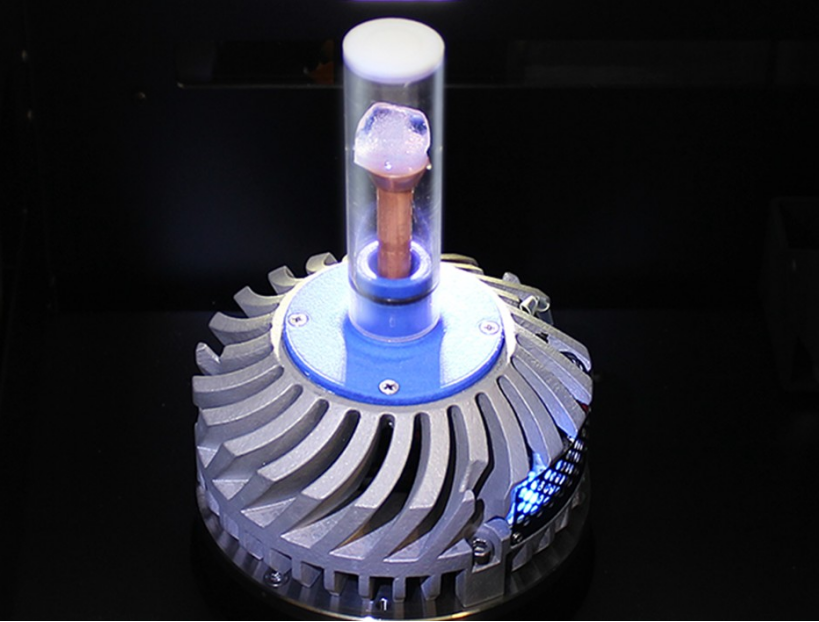

温控样品台
温控样品台可在温度变换环境中原位进行显微CT测量，以研究温度对物体的三维微观结构的影响。温控样品台可以实现从环境温度下降40°C到上升120°C的冷却和加热。通过48MHz内部微处理器，可以通过小于1°C的精度精准控制温度范围。
|
项目 |
性能 |
|
最低温度 |
低于环境温度40°C |
|
最高温度 |
120°C |
|
特点 |
加热和制冷一体 在同一个样品台上可实现冷热交替变化实验 |
02

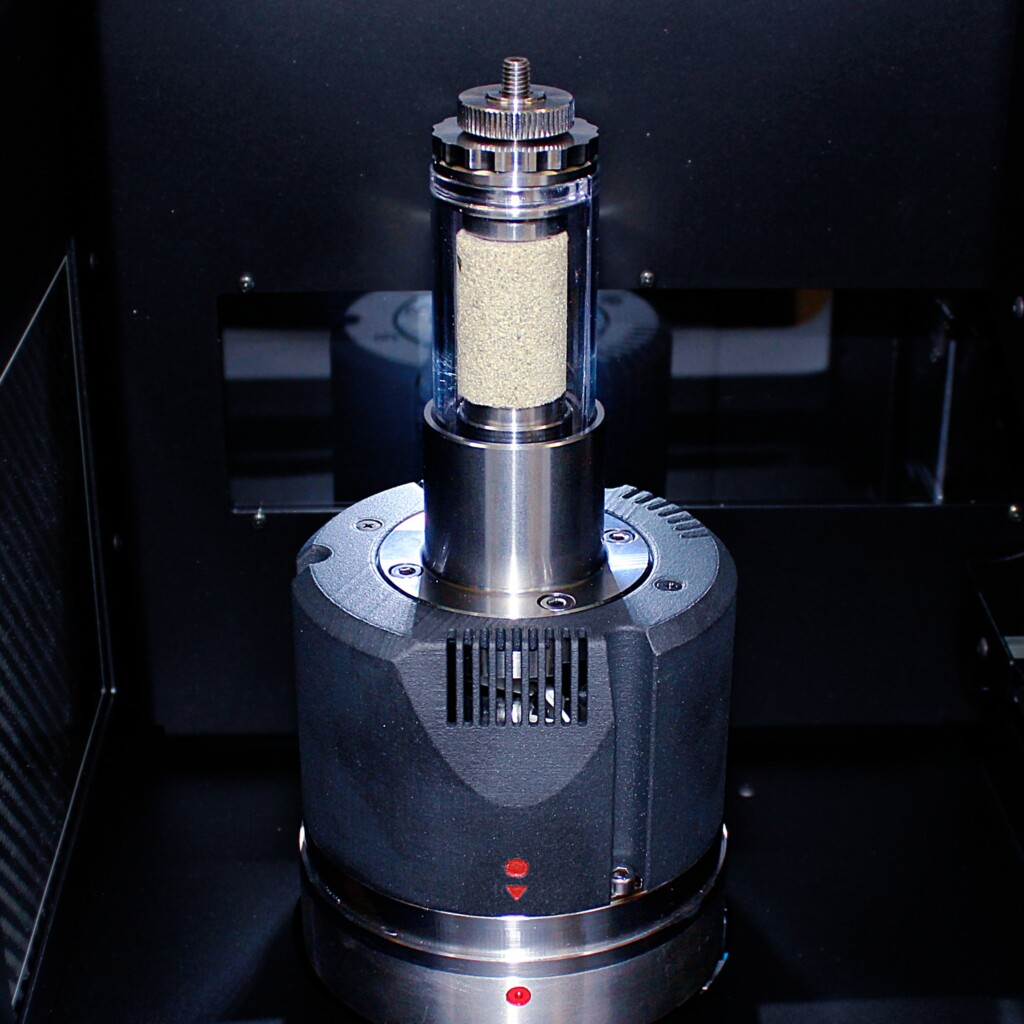

压缩/拉伸试验台
压缩/拉伸试验台可在现场进行机械测试，研究压缩和拉伸对物体的三维微观结构的影响。压缩和拉伸可以在同一个设备中进行，其精度为最大功率的1%。目前最大载荷为1000N，未来将添加其他负载单元。
|
项目 |
性能 |
|
最大拉伸力 |
1000 N |
|
最大压缩力 |
1000 N |
|
工作行程 |
10 mm |
|
最大样品直径 |
22 mm |
|
加载速度 |
0.3-3.3 mm/min |
|
样品高度范围 – 压缩测试 |
8-33 mm |
|
样品高度范围 – 拉伸测试 |
8-25 mm |
|
特点 |
综合性能突出 |
03

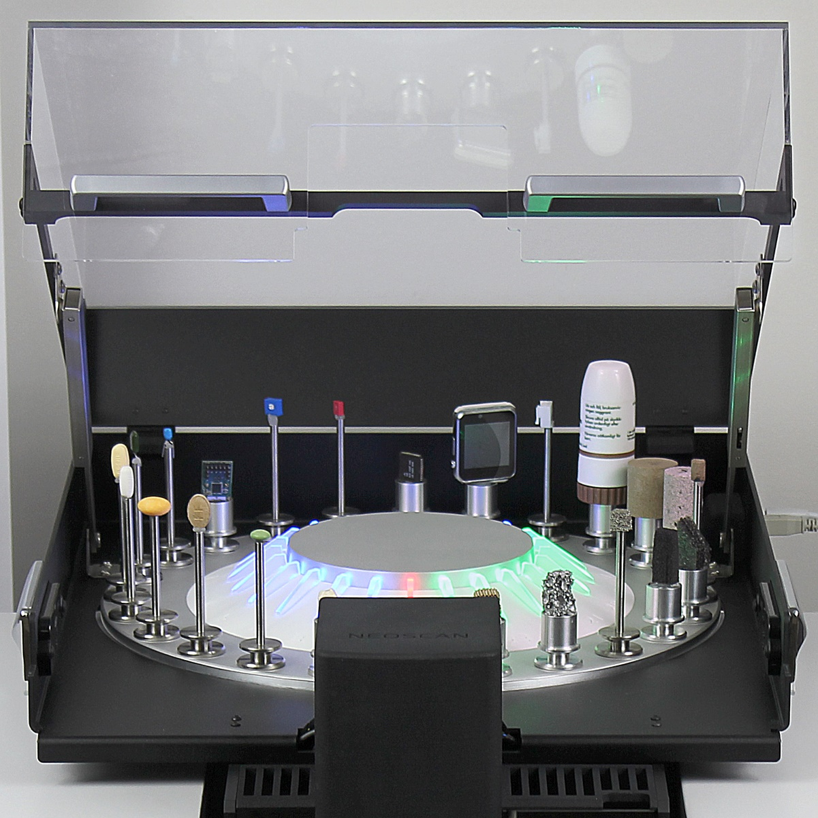

自动进样装置
自动样品装置可实现样品的自动更换。它位于屏蔽区域外部，因此可以在不中断扫描周期的情况下取出已扫描的样品并加载新样品。
|
项目 |
性能 |
|
样品位 |
24个 |
|
最大样品直径 |
30mm |
|
最大样品高度 (低分辨率情况下) |
60 mm |
|
最大样品高度 (高分辨率情况下) |
25 mm |
|
特点 |
能按照每个样品位预先设定的参数，自动进样-扫描-重构-退样，大幅提高设备利用率，节省劳力 |
